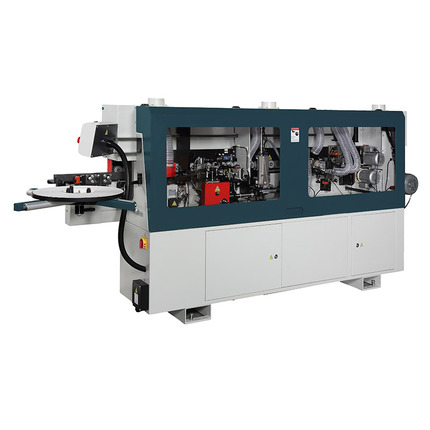

Edge Banding Machine with premilled unit
OAV MAX350P is fully functional edgebander which will bring you the high-quality results on the workpieces.
It coils up to 3mm thick, and strips up to 4mm , this affordable machine is equipped with 1.2kgs capacity glue tank, pre-milling, auto gluing, edge cutting,end trimming, flush trimming, scraping and buffing functions.
Featuring a user-friendly adjustment with numerical indicators as well as TOUCH SCREEN (optional) display for all operations. PLC parameter setting & temperature control bring stable and reliable working conditions which raise the quality of your products also saving times.
This best choice is the helper to optimize your investment and take your organizational output and performance to the next level!
It coils up to 3mm thick, and strips up to 4mm , this affordable machine is equipped with 1.2kgs capacity glue tank, pre-milling, auto gluing, edge cutting,end trimming, flush trimming, scraping and buffing functions.
Featuring a user-friendly adjustment with numerical indicators as well as TOUCH SCREEN (optional) display for all operations. PLC parameter setting & temperature control bring stable and reliable working conditions which raise the quality of your products also saving times.
This best choice is the helper to optimize your investment and take your organizational output and performance to the next level!
Edge Feeding for Coiled Materials
Edge feeding is automatic for roller materials with the thickness between 0.4-3 mm.
Operating Panel with LED Keypad
- Glue temperature setting
- Choose and disengage any units individually.
- Choose and disengage any units individually.
Pre-milling unit
Two diamond milling heads ensure the edge of workpiece is absolutely straight to the material of edge being glued.
Glue Pot
The 1.2kg Teflon-coated glue pot is designed for EVA hot-melt glue.
The glue is applied with an adjustable glue roller.
The glue is applied with an adjustable glue roller.
Guillotine Shears
Coiled material up to 3mm in thickness can be trimmed by the guillotine shears. Swing design guillotine shears would not pull edge.
End Cutting Unit
It is mounted on high-precision linear bearings, which ensure perfect cutting results, and meets challenge for different type of edge.
Flush trimming
The adjustment of the settings from flush trimming for thin edge, as well as radius trimming for thicker edge, is quick and easy. TC 2mm radius tooling is included as standard. With dust collection design.
Scraping Unit- Radius Scraping Unit
The scraping unit fine-tunes the edge radius and removes excess glue.
Buffing Unit
It leaves a super finish on ABS and PVC edging, and removes any discoloration on the edges, which is especially noticeable when working with dark edge material.
Heavy-duty Chain Feeder
The steady work-piece feeding mechanism is comprised of a chain and set of drive rollers, which will leave no scratches on the work-piece surface.
| Model | MAX350P |
| Feeding speed | 9M/min. |
| Panel Thickness | 8-45mm |
| Edge Thickness | 0.4 - 3mm |
| Mini. Panel width | 90mm |
| Mini panel length | 170mm |
| Working table height | 960mm |
| Extensible support width | 560mm |
| Extraction connector Ø in mm | Ø5" |
| Total Motor Power | 5.5KW |
| Weight, kg (with standard equipment) | 600/648kgs (N.W./G.W.) |
| Packing size (LxWxH) | 3230 x 720 x 1370 mm |
| Pre-milling | 12000rpm |
| Front/rear | 8800rpm |
| Up/down | 12000rpm |
| Buffing | 3000rpm |
| Power (kw) of each motor | |
| Feeding motor | 1.50 (Kw) |
| Glue pot heating (5 elements) | 1.315 (Kw) |
| Pre-milling motor | 1.50 (Kw) |
| Pre-heating | 0.40 (Kw) |
| Glue spindle motor | 0.25 (Kw) |
| Front/rear trimming motor | 0.22 (Kw) |
| Top/down trimming motor | 0.37 (Kw) |
| Upper/lower buffing motor | 0.12 (Kw) |
